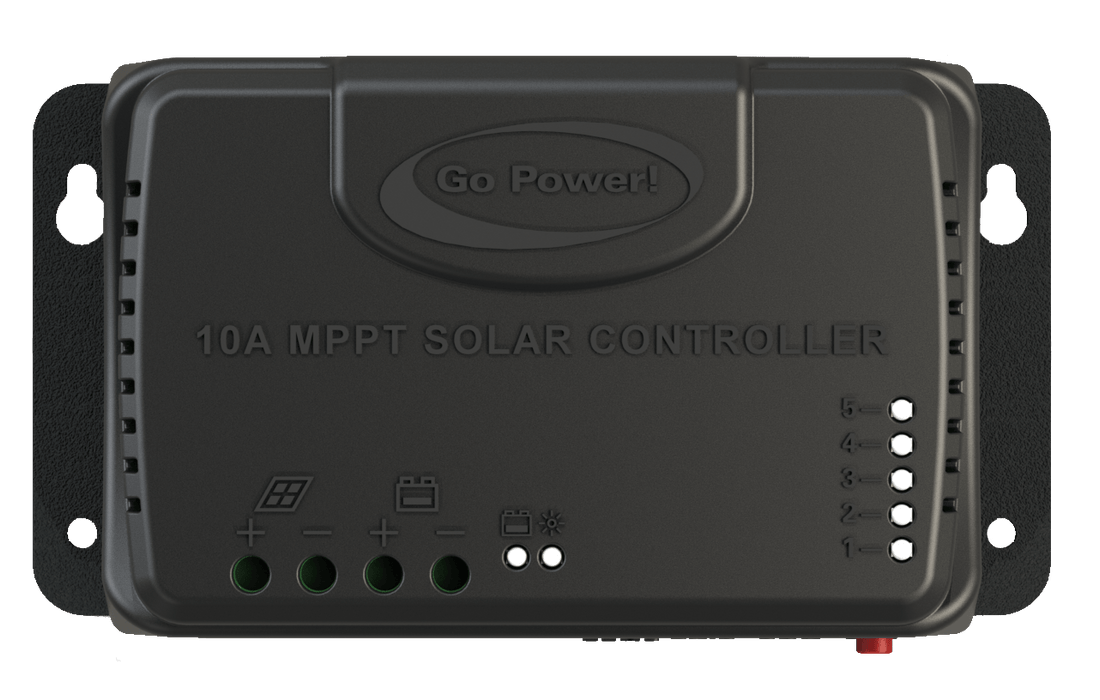

Model: GP-RVC-MPPT-10
An RV-C capable 10 Amp MPPT Solar Controller uses Maximum Power Point Tracking (MPPT) charging with up to 98% efficiency.
Features:
- Easily integrates into onboard communications (RV-C) systems
- Regulates and prevents the solar panel from overcharging batteries. Maximum Power Point Tracking (MPPT) charging and 4 battery charging profiles.
- The most efficient MPPT controller for RVs
- Compatible with all battery types, including Lithium
- Maximizes all power from your solar modules
- Stackable: add additional controllers to expand your solar array
- Optional Bluetooth® remote
- 5-year warranty
Optional Accessories:
- Surface-mounted remote display; shows the charge current to the battery, and battery voltage - (GP-RVC-R)
- Bluetooth® Wireless Technology; works seamlessly with the Go Power! Connect app to provide wireless monitoring of the controller's parameters and data view
SPEC
PARAMETERS
System Voltage
12V
No-load Loss
8ma
Max PV Input Voltage
<100V
Rated Current Charge
10A
Max PV Input Power
150W
Battery Type Selection
GEL
AGM
FLOODED
LiFePO4
Custom
Equalize Charge Voltage
–
–
14.9V
–
8.32V
Bulk-Absorption Voltage
14.1V
14.4V
14.4V
14.4V
8.32V
Float Charge Voltage
13.7V
14.0V
8.32V
Recharge Voltage
13.2V
8.32V
Over-Discharge Return Voltage
12.6V
12.2V
8.32V
Under-Voltage Warning Level
12.0V
8.32V
Over-Discharge Voltage
11.0V
8.32V
Operation Temperature
-35°C ~ +45°C
Dimensions
6.1 in x 3.3 in x 1.8 in (155mm x 86mm x 45.6mm)
Weight
0.67lbs (300g)
IP Protection
IP30
Communication
RS485, RV-C
Operation Altitude
< 3000M
Warranty
5-years
