MODEL: GP-PT-400
The PowerTrak™ 400-Watt Solar & Inverter/Charger System is a complete power system ideal for robust off-grid power. This system includes all solar, inverter, installation hardware and smart battery components required to have the charging capability from both solar and shore power. Understand your power system easier with integrated smart technology. This system features mobile app support.
It has two powerful solar modules that produce 400 watts of solar charging power and will charge your battery with up to 18+ amps of charging current. The PowerTrak-400 also includes our 3000 watt Inverter Charger, a supreme all-in-one unit that combines 3000 watts of pure sine wave AC power with a built-in battery charger and transfer switch.
This system can be expanded to accommodate up to 3000-watts of solar with stackable MPPT controllers. Extend your weekend stay and enjoy dry camping freedom without the need for a generator. This system is ideal for travelers going off-grid for 1-4 days.
*Best paired with 300+Ah of Go Power! Advanced Lithium Batteries.

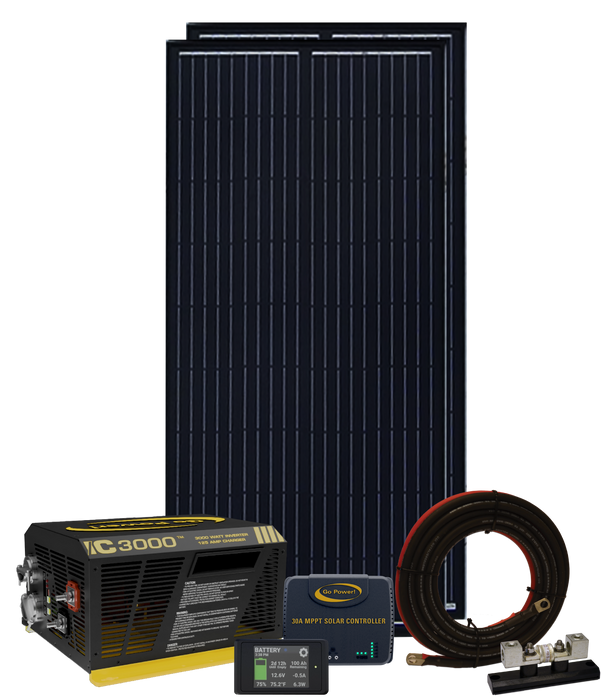

Included in the PowerTrak™ System:
-
3000 watt pure sine wave Inverter Charger for AC power (GP-IC-3000), with built-in 100 amp battery charger and 50 amp dual leg transfer switch
- NEW 3” colour touch-screen remote display (GP-RVC-DISP-3)
- 30 amp, stackable MPPT, RV-C compatible solar controller (GP-RVC-MPPT-30)
-
DC inverter install kit (GP-DC-KIT5)
- 1 x 25' of solar output cable (#10) red & 1 x 25’ of solar output cable (#10) black
- Mounting hardware (1 x GP-MH-4-KB) & all wiring connections
Complete Solar + Inverter System Comparison
| GP-PT-1200 | GP-PT-800 | GP-PT-400 | |
|---|---|---|---|
| Output power | 1200 W / 57.6 A | 800 W / 38.4 A | 400 W / 19.2 A |
| Inverter power | 3000 W | 3000 W | 3000 W |
| Solar controller | 30 A, optional Bluetooth®, MPPT | 30 A, optional Bluetooth®, MPPT | 30 A, optional Bluetooth®, MPPT |
| Inverter remote | On/off, LED monitoring | On/off, LED monitoring | On/off, LED monitoring |
| Smart Converter Charger | 125 A | 125 A | 125 A |
| Transfer switch | 50 A | 50 A | 50 A |
| Inverter Fuse and Cable Kit | 400 A fuse, 4/0 cable | 400 A fuse, 4/0 cable | 400 A fuse, 4/0 cable |
SPECIFICATIONS
Solar Modules and Controller
| Solar cell type | Monocrystalline |
|
Output power
|
200 W x2
|
|
Rated current
|
27.9 A |
|
Rated DC voltage
|
19.11 V
|
| Open-circuit voltage | 24.09 V |
| Module efficiency | 16.4% |
| Connectivity | MC4 connectors |
| Solar controller | 30 A, optional Bluetooth® remote, MPPT RV-C, compatible with all battery types, including Lithium, stackable |
| Frame type | Clear anodized aluminum frame |
| Certifications | CE |
| Dimensions (each) | 59.1 x 26.3 x 1.57 in / 1500 x 668 x 40 mm |
|
Weight (each)
|
32 lbs / 14.5 kg
|
|
Warranty
|
25 years power output (module) / 5 years (controller)
|
Inverter/Charger Specifications
|
Inverter Specifications |
||
|
Output Power (up to 40ºC) |
3000W |
|
|
Surge Power (100 milliseconds) |
6000W |
|
|
Surge Power (5 seconds) |
4800W |
|
|
Peak Output Current |
52A |
|
|
Continuous Output Current |
25A |
|
|
Output Voltage |
115 VAC |
|
|
Output Frequency |
60 Hz ±0.1Hz |
|
|
Output Waveform |
Pure Sine Wave |
|
|
Efficiency (Peak) |
90% |
|
|
DC Input Voltage Range |
9-17 VDC |
|
|
Maximum Continuous DC Input Current |
400 ADC |
|
|
No Load Power Consumption |
Normal Mode:25W, Sleep Mode: <5W |
|
|
AC Connections |
Split Phase In/Dual Out, Dual In/ Dual Out |
