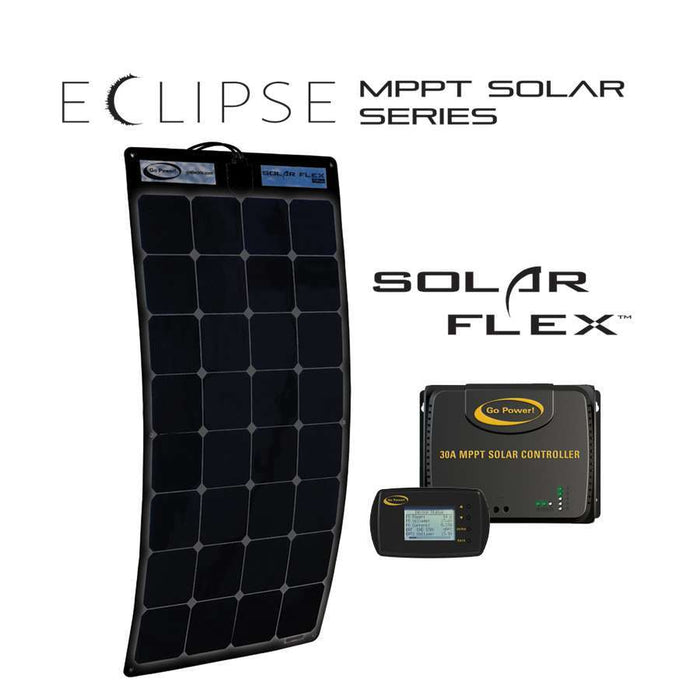

Charge batteries faster and maximize your solar charging performance with the new 190-watt SolarFlex™ Eclipse MPPT solar kit. Supercharge your solar array to 98% conversion efficiency with MPPT charging. Ideal for series configurations. Bluetooth® enabled remote* allows you to view and change essential battery stats from your handheld device.
Easy to install, and expandable, the Go Power! SolarFlex™ Eclipse 190W Solar Kit is the largest single panel 12-volt charging kit on the market. This powerful battery charger is great for maintaining the charge in all types of batteries and is ideal for extended RVing or dry-camping.
*Best paired with 200Ah of AGM Battery Power, or 100Ah Lithium Battery Power.
Kit Features:
- Expandable to 3000-watts of solar with stackable MPPT controllers
- Black SolarFlex™ 190 watt, 9.45 amp solar module with ETFE top-sheet

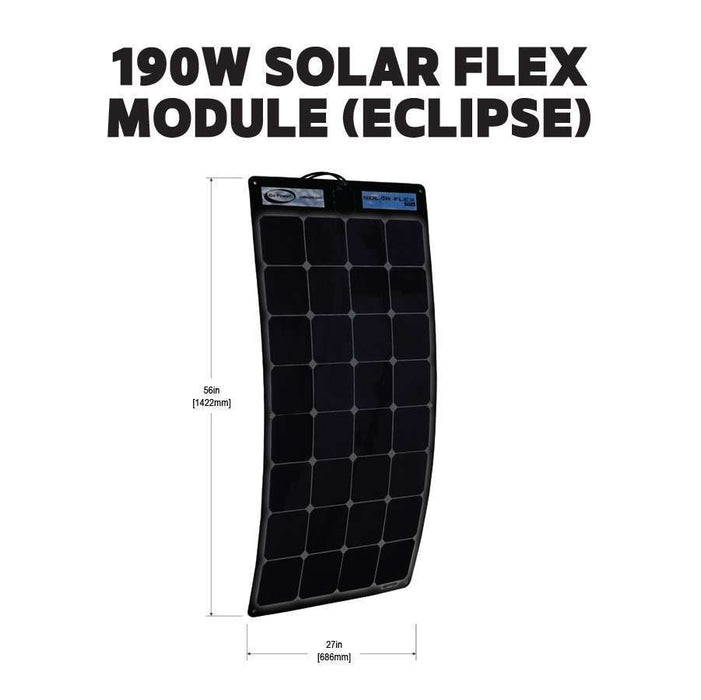

- Panel dimensions: 55.98 x 27.2 x 0.1 in 5-year power output panel warranty

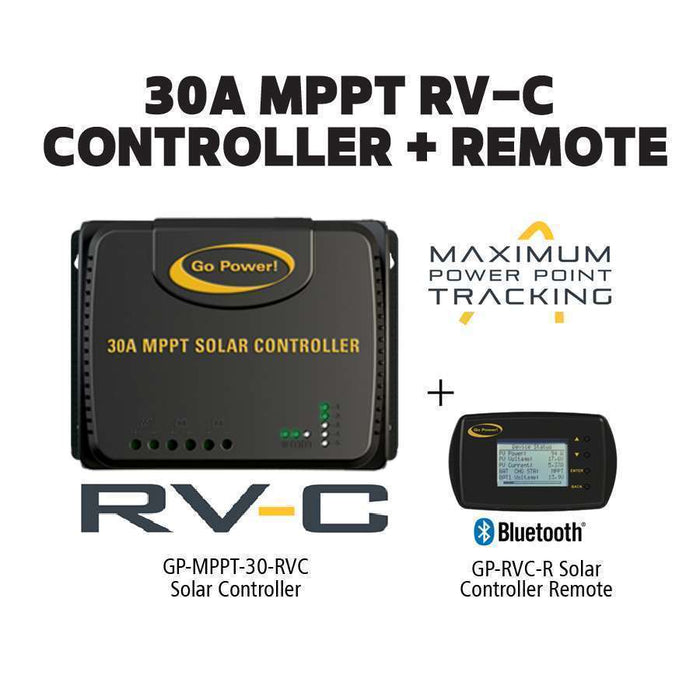

- 30 amp, stackable MPPT, RV-C compatible solar controller
- Bluetooth® enabled remote
- Includes 25’ solar output cables and mounting hardware

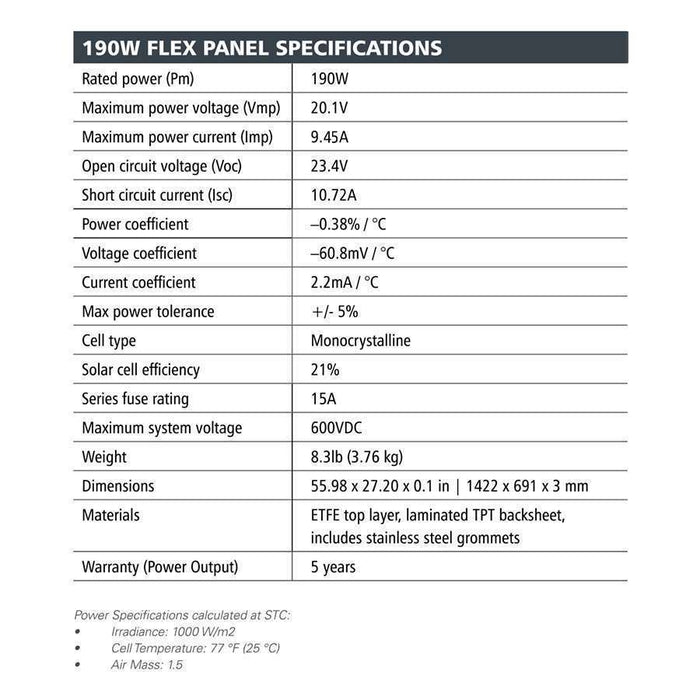

SPECIFICATIONS
Solar Modules and Controller
| Solar cell type | Monocrystalline |
|
Output power
|
190 W
|
|
Rated current
|
9.45 A |
|
Rated DC voltage
|
20.1 V
|
| Open-circuit voltage | 23.4 V |
| Connectivity | Solar Branch Connectors |

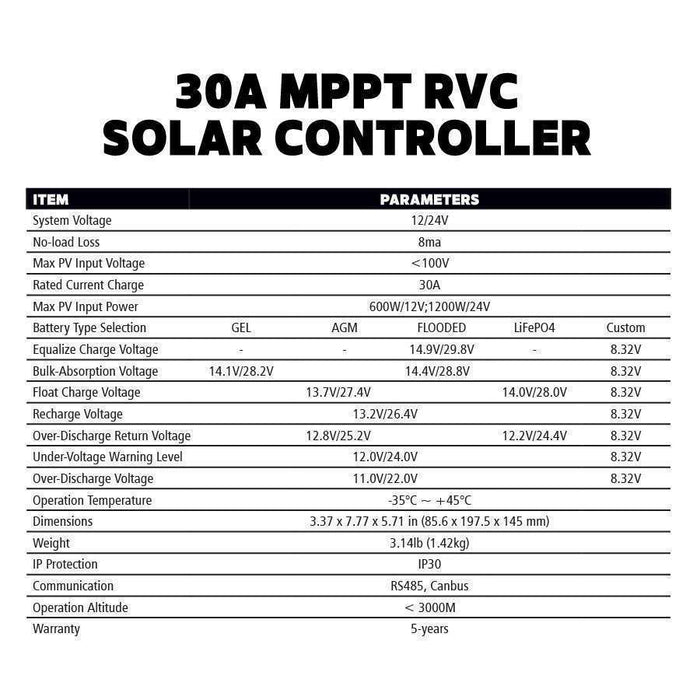

| Solar controller | 30 A MPPT, multi battery option, 4 stage charging, with optional LCD Bluetooth remote |
| Materials | Black Laminated TPT Back Sheet with ETFE Top Layer |
| Certifications | CE |
| Panel Dimensions | 55.98 x 27.20 x 0.1 in | 1422 x 691 x 3 mm |
|
Weight
|
8.3 lbs / 3.76 kg
|
|
Warranty
|
5 years power output (module) / 5 years (controller)
|
