PRODUCT DETAILS
AIC-2000-SL-DIS-KIT — 2000W Single-Line Advanced Inverter Charger Package
Stop piecing together your RV power upgrade part by part. The AIC-2000-SL-DIS-KIT arrives as a complete, ready-to-install package — the Go Power! 2000W Advanced Inverter Charger, PowerTrak™ Display, and every RV-C cable and harness required. One part number for dealers and distributors, one box for installers and DIYers.
PowerTrak™ Connected
The AIC-2000-SL-DIS-KIT uses built-in RV-C communication to integrate with the full PowerTrak™ ecosystem, including:
- Go Power! Advanced Lithium Batteries
- Battery Manager Kit
- Dometic MPPT Solar Controllers
Mobile App Control
Monitor and control your entire power system from your phone. The Go Power! Connect / Dometic Power app (iOS & Android) gives you real-time solar charging stats, battery levels, power consumption, inverter settings, and charging parameters — all from your mobile device.
FEATURES

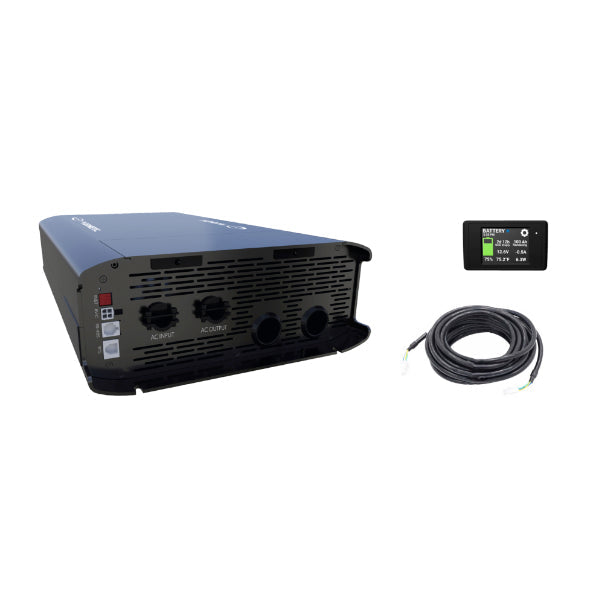

Package Includes
- AIC-2000-12-SL 2000W Advanced Inverter Charger

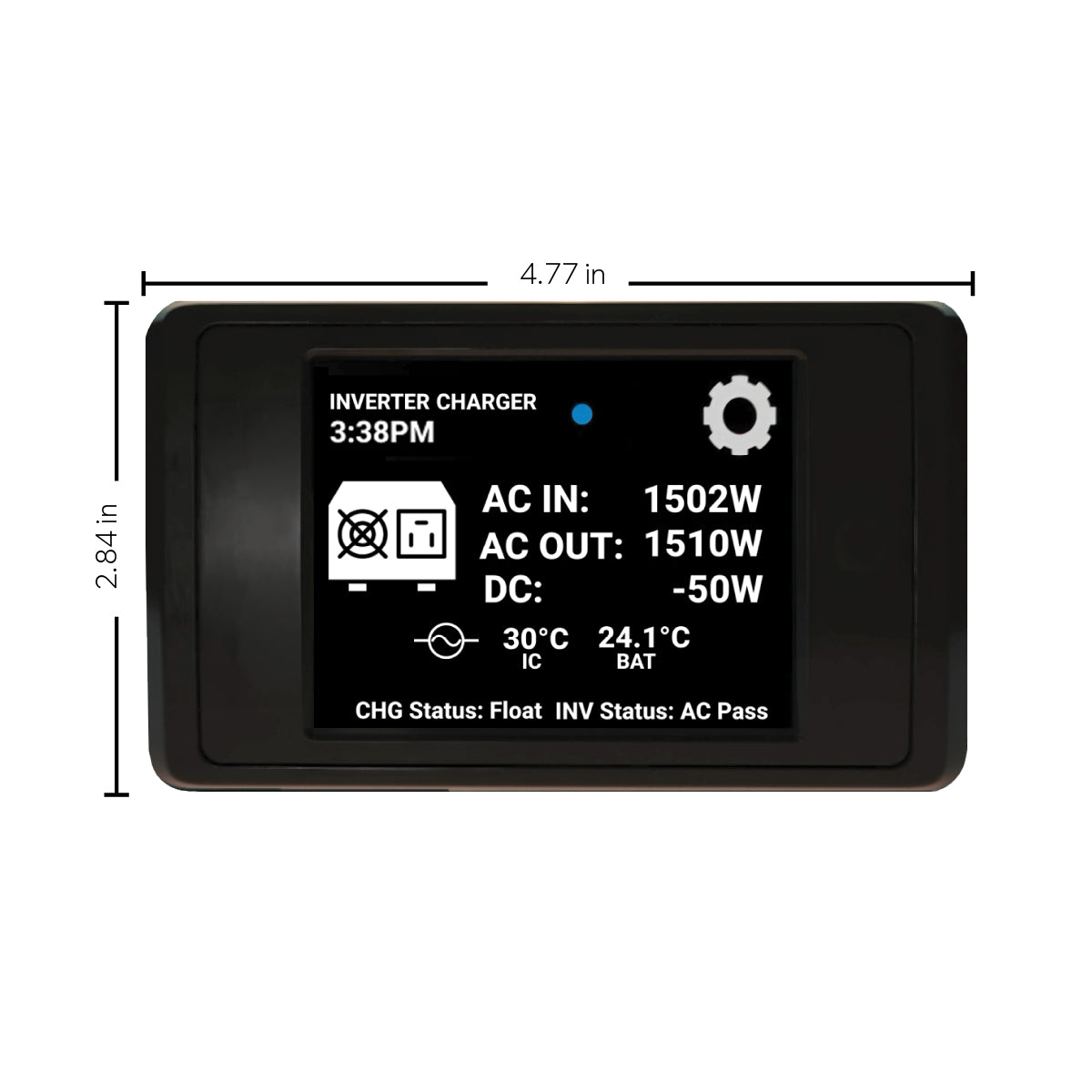

- PowerTrak™ Display
- 25 ft RV-C extension cable
- RV-C harnesses and accessories required for installation
- Quick Start Guide
Key Features
- 2000W continuous power output — 4000W surge capacity (2 seconds)
- 100A battery charger with multi-stage charging support
- 30A built-in transfer switch
- UL Listed
- 3-year warranty
Built-In Protections
- AC overvoltage & undervoltage
- AC overcurrent, over frequency & under frequency
- AC output overload & short circuit
- DC overvoltage & undervoltage
- Over temperature
SPECIFICATIONS
AIC-2000-12-SL Inverter Charger
| Input Voltage Waveform | Sinusoidal (utility or generator) |
|---|---|
| Nominal Input Voltage | 120 VAC |
| AC Input Voltage Range | 65-140 VAC |
| Nominal Input Frequency | 60 Hz |
| Input Frequency Range | 55-65 Hz |
| Transfer Time | < 20 ms |
| Max AC Input Current | 30 A |
| Nominal DC Voltage | 12 VDC |
| HBCO/HBCI | 16.5/15 VDC |
| LBCO/LBCI | 10.5/12.5 VDC (programmable) |
| Max DC Input Voltage | 17 VDC |
| THDV | < 3% @ Nominal Voltage |
| Continuous Power | 2000 W |
| Surge Power (200 ms) | 4000 W |
| Surge Power (5 s) | 3400 W |
| Surge Power (5 min) | 2900 W |
| Output Frequency | 60 Hz (programmable) |
| Output Voltage | 120 VAC (programmable) |
| Output Waveform | Pure Sine Wave |
| Peak Efficiency | > 85% |
| No Load Power Consumption | < 25 W @ 12.5 VDC |
| Stand-By Power Consumption (Inverter Disabled) | < 15 W @ 12.5 VDC |
| Hibernation Mode Consumption | < 2 W @ 12.5 VDC |
| Max Charging Current | 100 A |
| Multi-stage Charging | Bulk, Absorption, Float, Equalize |
| Temperature Compensation | External battery sensor: -25 mV/°C |
| Operating Temperature (without derating) | -20 °C to 40 °C (-4 °F to 104 °F) |
| Operating Temperature (with derating) | -20 °C to 60 °C (-4 °F to 140 °F) |
| Relative Humidity | 5% to 95% non-condensing |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Certifications | FCC Class B Part 15, Industry Canada ICES-003 Class B, UL 458, CSA 107.1, ABYC A31, ABYC E11 |

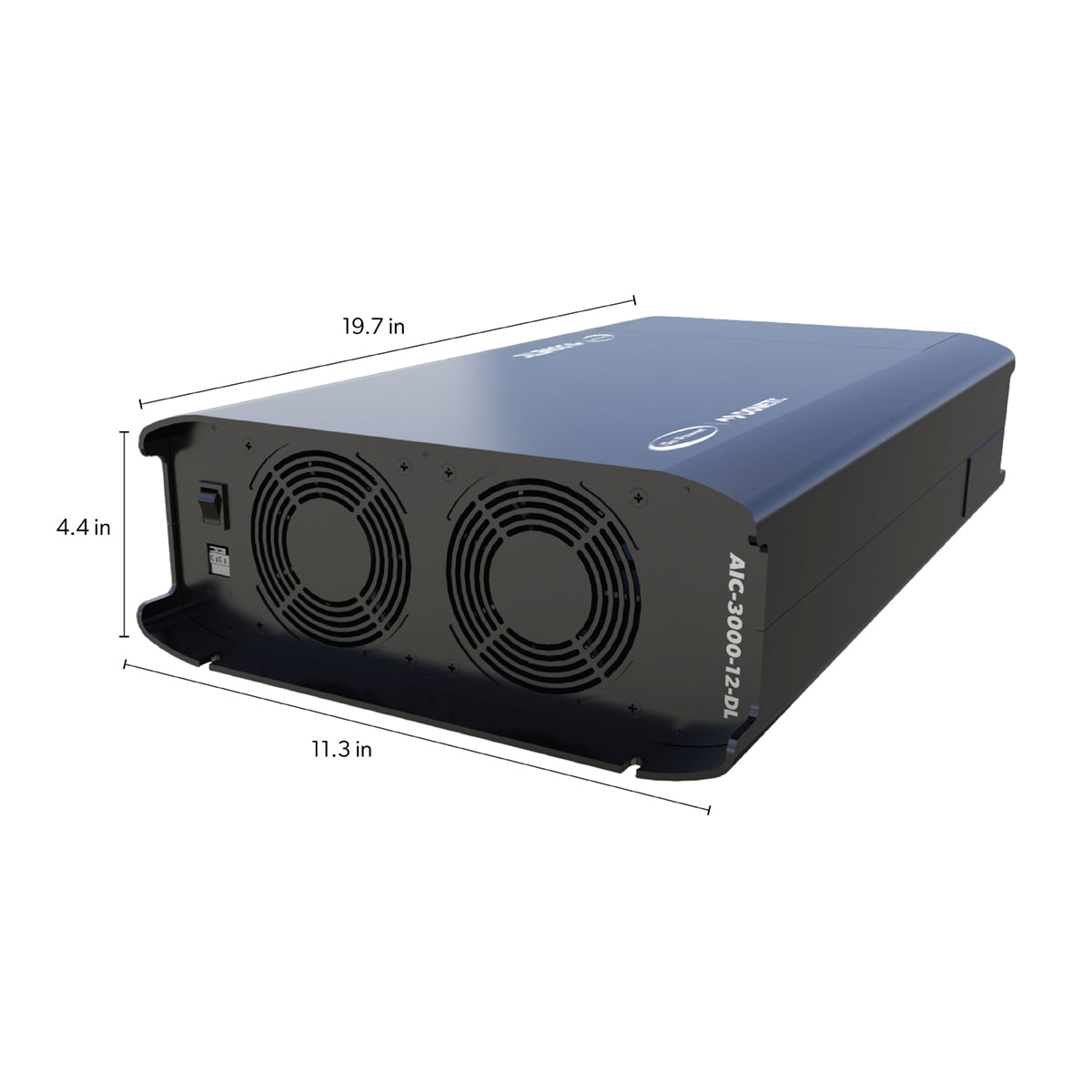

| Dimensions (L x W x H) | 19.7 x 11.3 x 4.4 in (499 x 288 x 112 mm) |
| Net Weight | 20.6 lbs (9.34 kg) |
| Warranty | 3 years |
