PRODUCT DETAILS

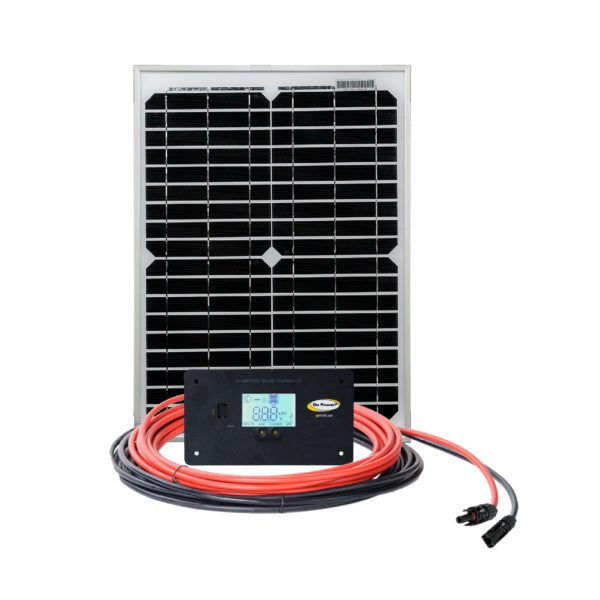

This 20W monocrystalline solar panel kit provides efficient, long-lasting battery charging for off-grid and RV applications. It includes a 12V flush-mounted PWM charge controller, rugged aluminum-framed panel, and all necessary mounting hardware and cables for straightforward installation.
FEATURES
SPECIFICATIONS
- Length:
- Width:
- Height:
- Weight:
| Rated Power (Pm) | 20 W |
|---|---|
| Maximum Power Voltage (Vmp) | 17.5 V |
| Maximum Power Current (Imp) | 1.14 A |
| Open Circuit Voltage (Voc) | 21.6 V |
| Short Circuit Current (Isc) | 1.21 A |
| Cell type | Monocrystalline |
| Max System Voltage | 600 VDC |
| Weight | 3.97 lb (1.8 kg) |
| Dimensions | 13.58 x 18.50 x 0.98 in (345 x 470 x 25 mm) |
| Frame type / material | Clear anodized aluminium frame |
| Warranty (Limited Power Output)* | 10 year |
| Controller: Nominal System Voltage | 12V |
| Controller: Max Solar Array Current | 10A |
| Controller: Dimensions (H x W x D) | 3.86 x 5.87 x 1.26 in; 98 x 149 x 32 mm |
| Controller: Weight | 260g; 9.2oz |
| Controller: Warranty | 5 years |
MANUALS, SAFETY INFORMATION AND DOWNLOADS
ACCESSORIES

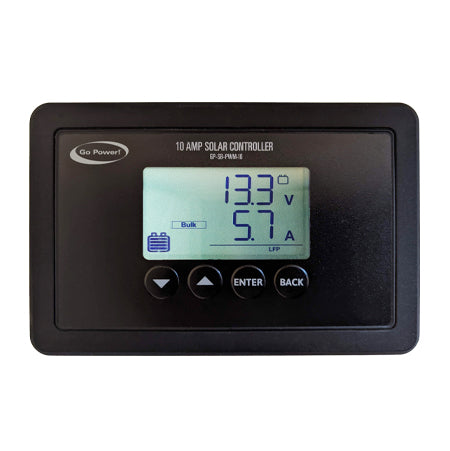

Go Power! 10A PWM Solar Controller — Single Bank (GP-SB-PWM-10)$67.99 USDView$85.00 USD

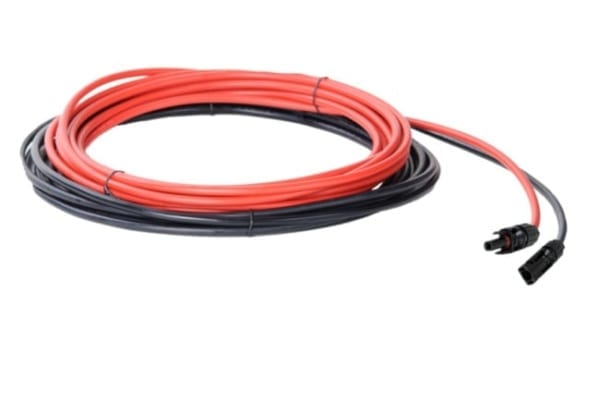

Solar Wire Extension Cables (1 foot - 50 foot)From $3.99 USDView
