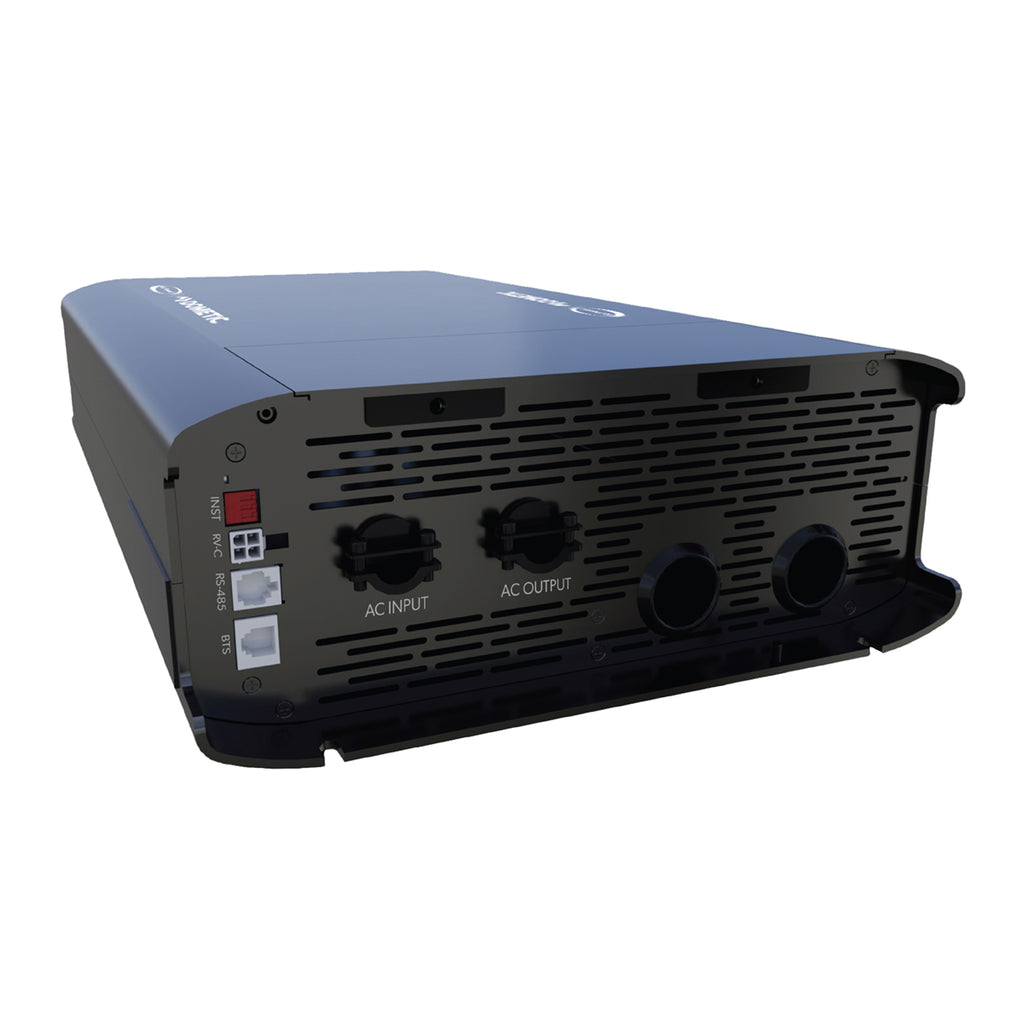

Go Power! 3000W Inverter Charger 12V – Dual Leg
Go Power! 3000W Inverter Charger 12V – Dual Leg
The Go Power! Advanced Inverter Charger is a powerful all-in-one solution for RV and off-grid power systems. When connected to shore power or a generator, it charges your house batteries and transfers AC power to connected loads through its integrated transfer switch. When external AC power is unavailable, the inverter converts DC battery power into clean, reliable 120V AC electricity for compatible onboard appliances.
Designed for performance and versatility, the Go Power! Advanced Inverter Charger features built-in mobile app connectivity and is PowerTrak™ compatible for advanced battery and energy system monitoring and control.
PowerTrak™ Compatible
Works with Advanced Lithium Batteries, Battery Manager Kit, and Dometic MPPT Solar Controllers. Monitor and control your system through the Go Power! Connect / Dometic Power app for iOS and Android.
Dual-Leg AC Pass Through Operation
The AIC-DL passes both AC input legs through the unit when connected to shore or generator power and the inverter is enabled. In inverter mode, the unit supplies 120VAC power from the battery system. Refer to the installation and operating manual for recommended wiring configurations and supported load distribution.
Features
- 3000W continuous output power / 6000W surge (200ms)
- 150A multi-stage battery charger (Bulk, Absorption, Float, Equalize)
-
Integrated 50A dual-leg transfer switch (<20ms transfer time)
-
Supports dual-leg AC pass-through when inverter is enabled
-
Firmware enhancements under development for future operation improvements
- UL Listed (UL458) / FCC Class B / CSA 107.1 / ABYC A31 & E11
- Pure sine wave output, <3% THD
- Peak efficiency >85%
- Protections: AC overvoltage, undervoltage, overcurrent, over/under frequency, output overload, output short circuit, DC overvoltage, undervoltage, over temperature
- Hibernation mode: <2W standby consumption
- RV-C network compatible
- 3-year warranty
Specifications
| Specification | Value |
|---|---|
| Continuous Power | 3000 W |
| Surge Power (200ms) | 6000 W |
| Surge Power (5s) | 4800 W |
| Surge Power (5min) | 3300 W |
| Nominal DC Voltage | 12 VDC |
| DC Input Voltage Range | 10.5 – 16.5 VDC |
| Max Charging Current | 150 A |
| Max AC Input Current | 50 A (dual-leg) |
| Transfer Time | <20ms |
| AC Input Voltage Range | 65–140 VAC |
| Output Voltage | 120 VAC (programmable) |
| Output Waveform | Pure Sine Wave |
| Output Frequency | 60 Hz (programmable) |
| THD | <3% @ Nominal Voltage |
| Peak Efficiency | >85% |
| No Load Consumption | <25 W @ 12.5 VDC |
| Standby Consumption | <15 W @ 12.5 VDC |
| Hibernation Mode | <2 W @ 12.5 VDC |
| Power Factor Correction | >0.98 (1C) |
| Operating Temp (no derating) | -20°C to 40°C (-4°F to 104°F) |
| Operating Temp (with derating) | -20°C to 60°C (-4°F to 140°F) |

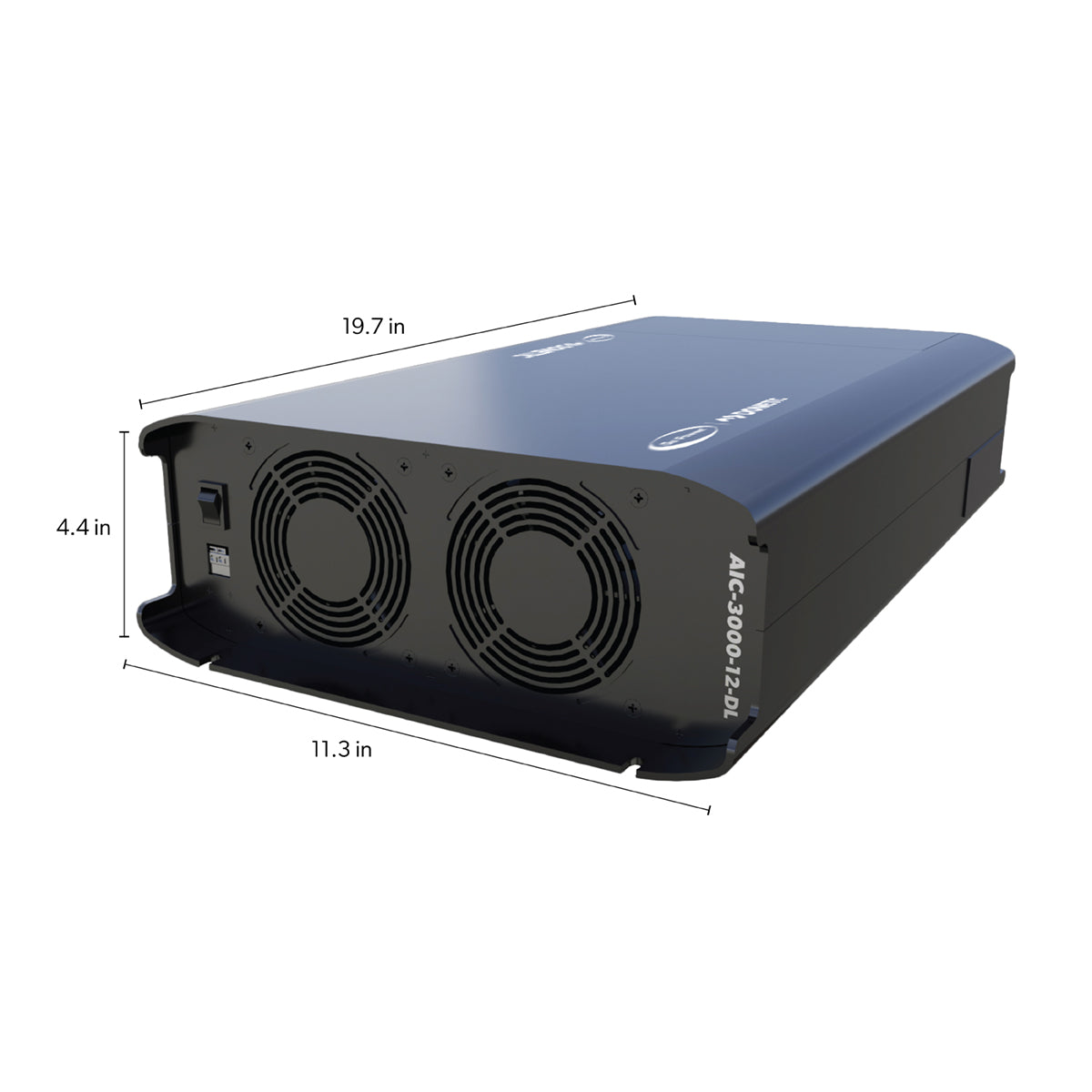

| Dimensions (L×W×H) | 19.7 × 11.3 × 4.4 in (499 × 288 × 112 mm) |
| Net Weight | 21.7 lbs (9.84 kg) |
| Certifications | UL458, CSA 107.1, ABYC A31, ABYC E11, FCC Class B, IC ICES-003 Class B |
| Warranty | 3 years |
