PRODUCT DETAILS

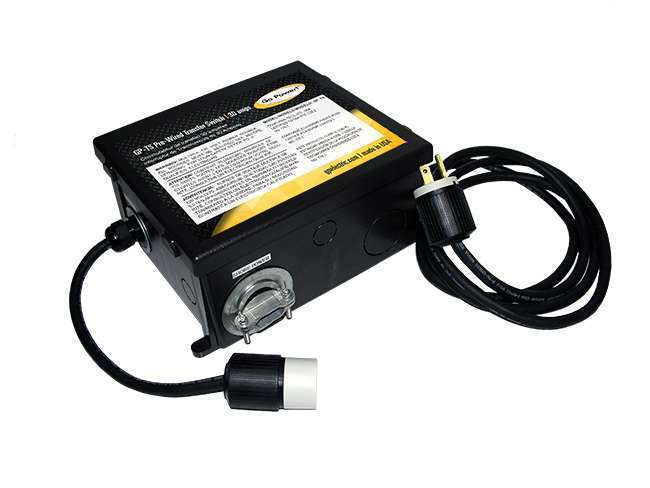

The Go Power! GP-TS is the prewired, circuit-protected version of the TS-30 automatic transfer switch, built to simplify and speed up installation. It ships with a cable and built-in plug to connect your inverter output, plus a receptacle that powers your converter only when shore power is available, so the inverter never feeds the converter.

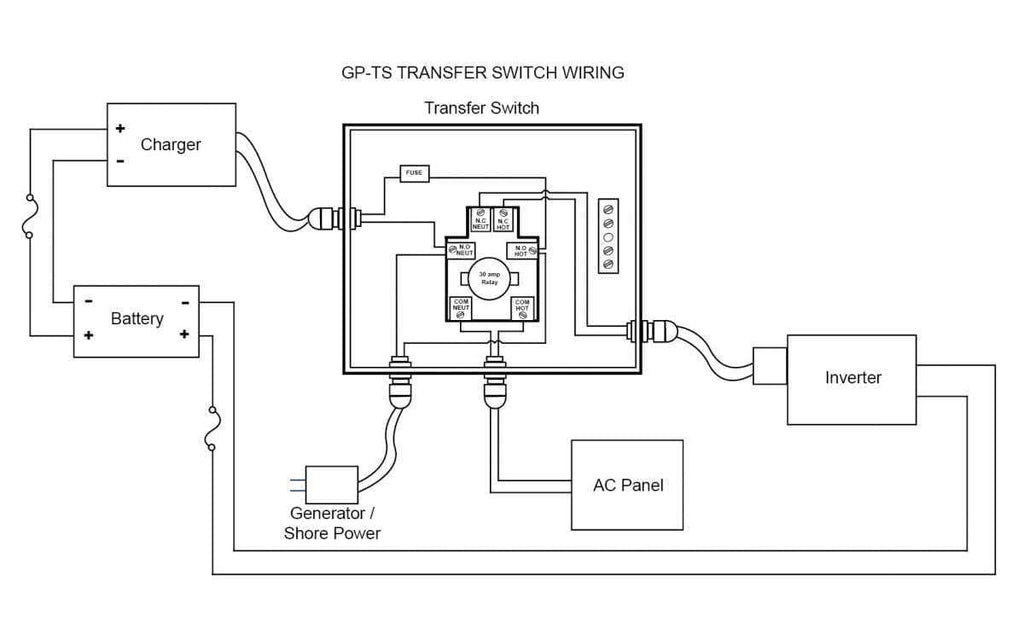

When shore or generator power is present it connects that source to your breaker panel; when you unplug, it automatically switches your inverter output in to power your circuits.
Discontinued model – outlet pricing while supplies last. For the standard hardwire version see the TS-30.
Features
- Prewired with inverter plug-in cable and converter receptacle for quick installation
- Built-in circuit protection
- Automatic switching between shore/generator power and inverter output
- Prevents AC back-feed when the inverter is wired into the RV electrical system
- 30 amp, 120 VAC single-leg service
Specifications
| Specification | Value |
|---|---|
| Model | GP-TS |
| Voltage | 120 VAC |
| Current Rating | 30 A |
| Dimensions (L×W×H) | 9.65 × 7.28 × 4.75 in |
| Weight | 3 lbs |
