PRODUCT DETAILS
OBSIDIAN™ Series 9 orders may require additional processing time.

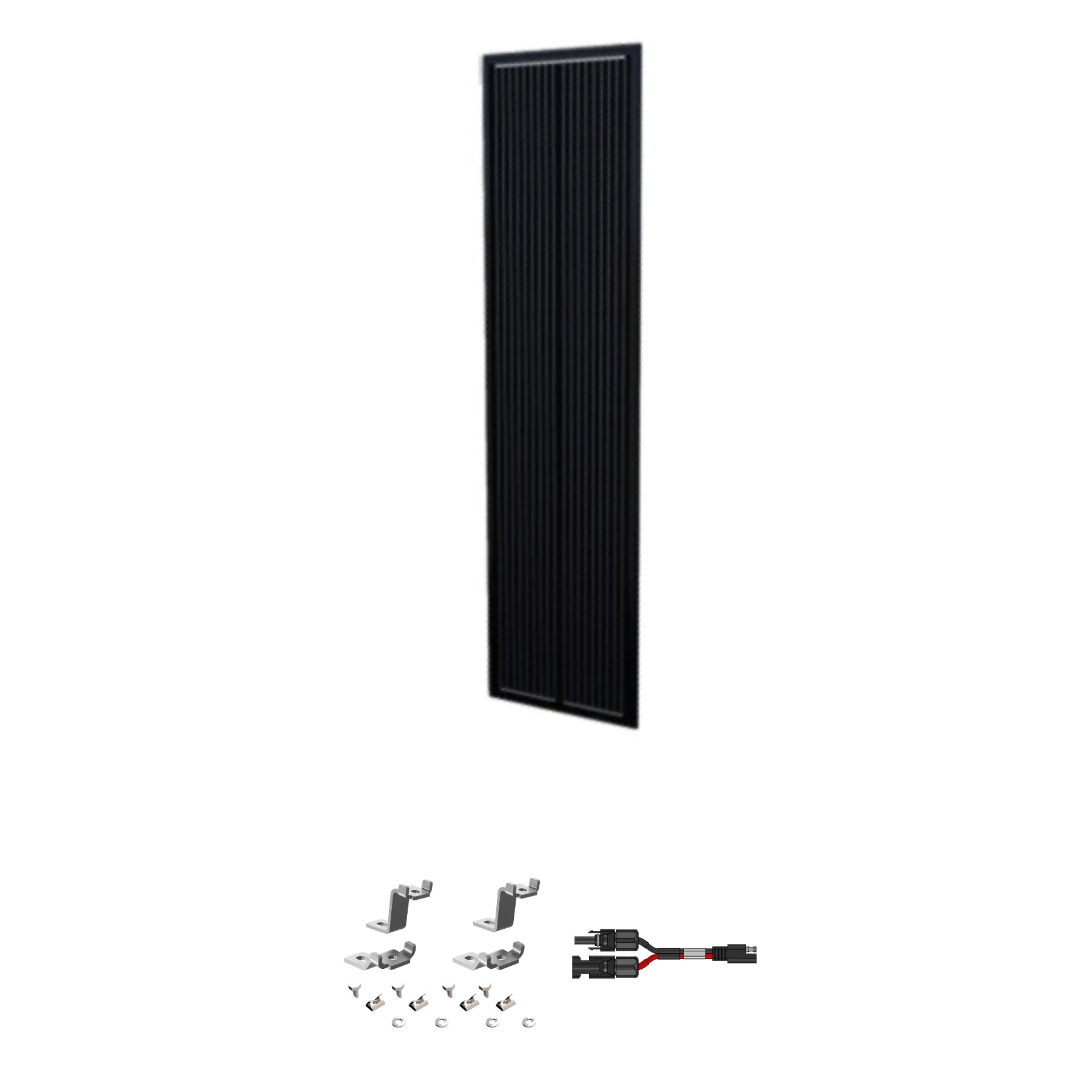

The Go Power! 190W OBSIDIAN™ Series 9 Expansion Kit adds a second low-profile 190W monocrystalline panel to an OBSIDIAN™ kit or any MPPT solar system with spare controller capacity. Nine-bus-bar cells, tempered anti-reflective glass and a 0.6-inch anodized frame match the KIT1056 panel exactly, so the array stays flush and balanced. Adds about 47Ah a day. Made in Canada; 25-year panel warranty and a North American support team (part of Dometic).
Built to the standard RV manufacturers install
Go Power! has designed mobile power since 1996 and is the solar brand fitted at the factory by Jayco, Forest River, Thor and other leading RV builders. The panels, controllers, cabling and mounting feet in this kit are the same parts those plants install on solar-equipped coaches, so the kit matches factory wiring and the Go Power! systems already on the road. Part of Dometic.
Series or parallel
With an MPPT controller you can wire two OBSIDIAN™ panels in series (43V open circuit) to cut cable losses on long runs, or in parallel to tolerate partial shade. With a PWM controller, wire in parallel only. Pre-installed MC4 connectors make either connection tool-free.
Start with the full kit
New to OBSIDIAN™? The 190W OBSIDIAN™ Kit with PowerTrak™ MPPT controller is the complete starting point.
FEATURES
- 190W OBSIDIAN™ Series 9 monocrystalline panel — 9-bus-bar cells, tempered anti-reflective glass.
- 0.6 in low-profile anodized frame — matches KIT1056.
- + ≈ 47Ah per day; 10.3A at maximum power.
- Pre-installed MC4 connectors; bypass diodes in the junction box.
- Made in Canada.
- 25-year panel power-output warranty, North American support team (part of Dometic).
WHAT IT RUNS
What 190W of solar puts back each day: about 0.6 kWh, or ≈ 47Ah into a 12V battery on a typical flat-mounted day (4.5 peak-sun hours at ~70% of nameplate). Tilted or in strong summer sun, expect up to ≈ 58Ah. Compare that with what your gear draws:
Figures are for this panel alone; add them to what your existing array produces.
| Typical 12V camping day | Daily draw | 190W of solar |
|---|---|---|
| Storage: parasitic draws of a parked RV | ≈ 4Ah/day | Covered daily |
| Weekend basics: LED lights, vent fan, water pump, phone & laptop charging | ≈ 25Ah/day | Covered daily |
| 12V compressor fridge alone, 24 h | ≈ 50Ah/day | ≈ 94% — covered when tilted or in summer |
| Fridge camp: basics + 12V compressor fridge | ≈ 75Ah/day | ≈ 62% — add ≈ 150W or run a generator/shore day |
| Fridge camp + furnace blower (4 h, cold nights) | ≈ 100Ah/day | ≈ 47% — add ≈ 250W or run a generator/shore day |
| Full comfort: fridge, furnace, CPAP, TV through inverter | ≈ 140Ah/day | ≈ 33% — add ≈ 400W or run a generator/shore day |
Rule of thumb: match panel watts to battery amp-hours (100W per 100Ah) for a bank that recovers from an overnight draw by mid-afternoon. A lithium battery accepts the full charge current; a lead-acid bank should not be discharged below 50%.
SPECIFICATIONS
- Length:
- Width:
- Height:
- Weight:
| Kit Part Number | KIT1057 |
|---|---|
| Panel Wattage | 190 W monocrystalline, 9-bus bar |
| Max Power Voltage (Vmp) | 18.2 V |
| Max Power Current (Imp) | 10.3 A |
| Open-Circuit Voltage (Voc) | 21.5 V |
| Short-Circuit Current (Isc) | 10.8 A |
| Max System Voltage | 300 V |
| Typical Daily Harvest | + ≈ 0.6 kWh / 47 Ah |
| Connectors | MC4, pre-installed |
| Panel Dimensions | 55.8 × 28.0 × 0.6 in |
| Panel Weight | 23.8 lb |
| Origin | Made in Canada |
| Panel Warranty | 25 years limited power output |
COMPARE MODELS
| Kit | Panel | Controller | Typical daily harvest* | Runs | Expandable | Warranty | Best for |
|---|---|---|---|---|---|---|---|
| 80W Eco Kit | 80W | 10A PWM | ≈ 20Ah | 1 battery, lights & fans | Yes, with MC4 branch | 25 yr panel / 5 yr controller | First solar on a small trailer or camper |
| 80W Universal MPPT Kit | 80W | 15A MPPT (IP68) | ≈ 20Ah | Gates, pumps, UTVs, sheds | — | 25 yr panel / 5 yr controller | Off-grid equipment, exposed mounting |
| 200W Overlander Kit | 200W | 30A PWM + Bluetooth | ≈ 49Ah | 12V fridge on an average day; 100Ah lithium | Yes — to 600W | 25 yr panel / 5 yr controller | Most RVs: complete starter system |
| 200W Overlander Expansion | 200W | Uses existing | + ≈ 49Ah | Adds a second fridge-day of charge | Plug-in via MC4 branch | 25 yr panel | Add to a factory Go Power! system |
| 400W Overlander Kit | 400W | 30A PWM + Bluetooth | ≈ 98Ah | Fridge, lights, fans, CPAP, inverter use | Yes — to 600W | 25 yr panel / 5 yr controller | Full-time and extended dry camping |
| 190W OBSIDIAN™ Kit | 190W | PowerTrak™ MPPT | ≈ 47Ah | 12V fridge on an average day; 100Ah lithium | Yes (KIT1057) | 25 yr panel / 5 yr controller | Low-profile premium panel, PowerTrak™ coaches |
| 215W OBSIDIAN™ Kit | 215W | PowerTrak™ MPPT | ≈ 53Ah | 12V fridge + lights most days; 100–200Ah lithium | Yes (KIT1053) | 25 yr panel / 5 yr controller | Highest output per panel, PowerTrak™ coaches |
| 190W OBSIDIAN™ Expansion (this kit) | 190W | Uses existing | + ≈ 47Ah | Adds a fridge-day of charge | Plug-in via MC4 | 25 yr panel | Expand an OBSIDIAN™ or MPPT system |
| 80W Module (panel only) | 80W | None | ≈ 20Ah | Replacement or add-on panel | Yes | 25 yr panel | Fleet/replacement panel |
*Daily harvest assumes 4.5 peak-sun hours at about 70% of nameplate on a flat-mounted panel, at 12.8V. Tilting a panel toward the sun adds 20–30% in spring and fall.
MANUALS, SAFETY INFORMATION AND DOWNLOADS
ACCESSORIES
Go Power! 190W OBSIDIAN™ Series 9 RV Solar Kit with PowerTrak™ MPPT Controller – Made in Canada (KIT1056)$795.99 USDView$995.00 USD
Go Power! MC4 Branch Connector Kit for 2 Panels in Parallel – 1M2F + 1F2M Pair (SC-BC-1-2-Kit)$14.99 USDView$19.99 USD
Go Power! MC4 Solar Extension Cable – Male to Female, 1 ft to 50 ft (Sold Individually)From $3.99 USDView
FAQ
Will it work with a non-OBSIDIAN™ system?
Yes. It is a standard 12V-nominal panel with MC4 connectors. Any controller with 10A+ of spare capacity accepts it; with PWM controllers wire it in parallel with panels of similar voltage.
Does it include a controller or mounts?
It includes the panel with pre-installed MC4 connectors. Use your existing controller; mounting hardware is available under Accessories.
How much solar does my RV need?
Start with 100W of panel per 100Ah of battery. A single 100Ah lithium battery running a 12V fridge, lights and fans uses about 50–70Ah a day, which 200W replaces on an average day; 400W covers that with margin for cloudy weather, a CPAP or inverter use. A weekend trailer with one lead-acid battery and no fridge is well served by 80–100W.
Flat mount or tilt?
Flat is what RV manufacturers do and it is fine for most owners: simplest, lowest drag, no wind loading. Tilting toward the sun adds 20–30% in spring and fall; the adjustable tilt mount kit under Accessories makes that optional.
Does shade matter?
Yes — a shadow on one cell can cut a panel's output by half or more. Mount away from the air conditioner shroud, antennas and vents, and park with the panels clear of trees when you can.
Is Go Power! the solar installed in my RV from the factory?
Very likely, if your coach is a Jayco, Forest River, Thor or many other brands. Go Power! has supplied RV manufacturers since 1996, so this kit uses the same panels, controllers and connectors as factory solar-prep and solar-equipped coaches.
What's the warranty?
Go Power! rigid panels carry a 25-year limited power-output warranty and Go Power! controllers a 5-year warranty, backed by a North American support team (part of Dometic). Register the product after purchase.
