PRODUCT DETAILS

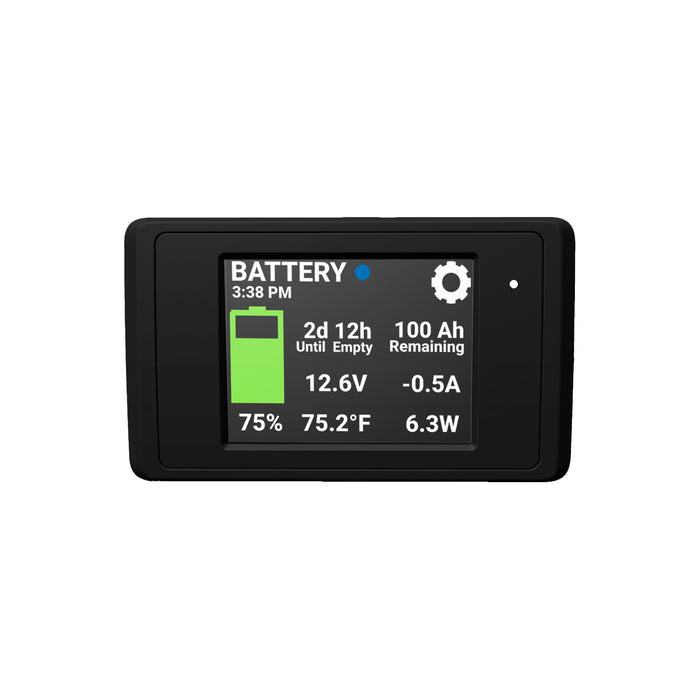

The PowerTrak™ Display Kit (GP-PT-DIS-KIT) puts your whole RV power system — solar controller, battery bank and inverter/charger — on one 3.2 in color touchscreen, and includes the 25 ft RV-C harness and terminating resistor you need to run it from the power bay to the living area. It is the starting point for a PowerTrak system: add RV-C components and they appear on the screen and in the Go Power! Connect app.
What it replaces
Instead of a solar remote here, an inverter remote there and a battery monitor somewhere else, PowerTrak shows state of charge, solar harvest and inverter status together, and lets you switch the inverter/charger from the screen.
Built to the standard RV manufacturers install
Go Power! has designed mobile power since 1996 and is the power brand fitted at the factory by Jayco, Forest River, Thor and other leading RV builders. PowerTrak™ is the RV-C display system that ties those components together — solar controller, inverter/charger, lithium batteries and shunt on one screen — and the same parts are available here for retrofits and upgrades. Backed by a North American support team (part of Dometic).
What’s in the box

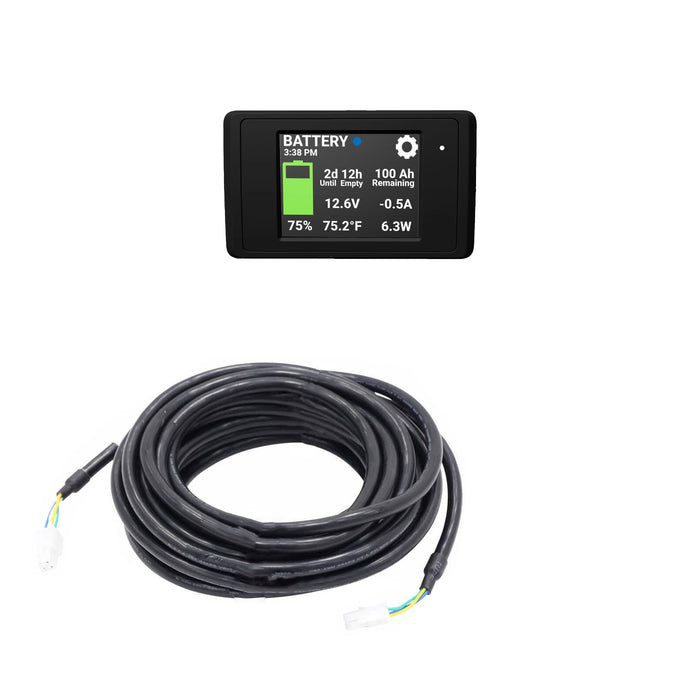

PowerTrak™ touchscreen display (GP-PT-DIS-3), 25 ft RV-C extension harness (GP-RVC-EXT-25), RV-C terminating resistor harness (GP-RVC-PT-TR) and the connectivity cables for the display.
Monitoring AGM or non-Go Power! lithium batteries? The Battery Manager Kit adds the 500A smart shunt to this same kit.
FEATURES
- One screen for the whole system — battery, solar and inverter/charger over RV-C.
- 3.2 in capacitive color touchscreen, auto-dimming, horizontal or vertical mounting.
- Bluetooth to the Go Power! Connect app; firmware updates over the air.
- Complete cabling — 25 ft harness and terminating resistor included.
- 12–48 V systems; powered from the network.
- 2-year warranty + North American support team (part of Dometic).
WHAT IT RUNS
SPECIFICATIONS
| Kit contents | GP-PT-DIS-3 display, GP-RVC-EXT-25 25 ft harness, GP-RVC-PT-TR terminating resistor, display connectivity cables |
|---|---|
| Kit model / SKU | GP-PT-DIS-KIT / 84025 |
| Display | 3.2 in capacitive touchscreen, 320 × 240, full color |
|---|---|
| Auto-dimming | Ambient light sensor |
| Orientation | Horizontal or vertical |
| Display dimensions | 4.75 × 2.75 × 0.75 in; panel cutout 4.375 × 2.375 in |
| Supply voltage | 12–48 VDC (powered from the RV-C network) |
| Max supply current | 400 mA @ 12 V; 200 mA @ 24 V |
| Bluetooth | Go Power! Connect app (iOS / Android), 50 m unobstructed |
| Wi-Fi | 2.4 GHz (over-the-air firmware updates) |
| Network | RV-C (CAN), 4-pin 2 mm pitch header |
| Operating temperature | -20 to +50 °C (-4 to 122 °F) |
| Storage temperature | -30 to +70 °C |
| Humidity | 5–95% RH, non-condensing |
| Warranty | 2-year limited |
COMPARE MODELS
PowerTrak™ is a plug-together RV-C network. Use this table to pick the part you need; if you are starting from nothing, the Display Kit or Battery Manager Kit includes the harness and terminator.
| Part | Model | What it is | Use it when |
|---|---|---|---|
| PowerTrak™ Display Kit | GP-PT-DIS-KIT | Display + 25 ft harness + terminating resistor | Starting a PowerTrak system from scratch |
| PowerTrak™ Display Only | GP-PT-DIS-3 | 3.2 in touchscreen, Bluetooth | Adding a display to a coach that already has the harness, or a second screen |
| Battery Manager Kit | GP-BMG | Display + 500A smart shunt + 25 ft harness + terminating resistor | Monitoring AGM, flooded or non-Go Power! lithium batteries |
| Smart Shunt 275A/500A | GP-SHUNT-500 | Shunt only | Adding battery state of charge to an existing display |
| Display Extension Harness, 25 ft | GP-RVC-EXT-25 | Male-to-male RV-C cable | Reaching from the power bay to a display in the living area |
| Extension Cable, 5 ft M-F | GP-RVC-EXT-MF5 | Male-to-female RV-C cable | Adding a few feet to an existing run |
| Branch Connector Harness | GP-RVC-PT-BC | RV-C tee, 300 mm / 100 mm legs | Adding another device to the network |
| Terminating Resistor Harness | GP-RVC-PT-TR | RV-C network terminator | One per PowerTrak system, at the battery/shunt end |
| Advanced Lithium Data Cable, 16 in | GP-ADV-BC-400 | Battery-to-battery / battery-to-network data cable | Networking Go Power! Advanced Lithium batteries (short run) |
| Advanced Lithium Data Cable, 24 in | GP-ADV-BC-600 | Battery-to-battery / battery-to-network data cable | Networking Go Power! Advanced Lithium batteries (longer run) |
| Lithium Battery Data Terminating Resistor | GP-RVC-BCR | End-cap terminator for the battery data port | One per networked Advanced Lithium battery cable; two with 2+ batteries |
MANUALS, SAFETY INFORMATION AND DOWNLOADS
ACCESSORIES
FAQ
What’s included?
The PowerTrak™ touchscreen display, a 25 ft male-to-male RV-C extension harness, an RV-C terminating resistor harness and the display connectivity cables. A smart shunt is not included — see the Battery Manager Kit if you need one.
What does the PowerTrak display show?
Battery state of charge, voltage, current, remaining capacity and time to empty (from a smart shunt or Go Power! Advanced Lithium batteries); solar input and daily harvest from RV-C solar controllers; and inverter/charger status and control for AIC inverter chargers — all on one 3.2 in touchscreen, with the same data in the Go Power! Connect app over Bluetooth.
Which products work with it?
Any RV-C PowerTrak™ component: Dometic SC-DB-MPPT-30-12 and SC-DB-MPPT-40-12 solar controllers, Go Power! GP-RVC-30-MPPT and GP-RVC-MPPT-10 controllers, AIC-2000/3000 inverter chargers, Go Power! Advanced Lithium batteries and the GP-SHUNT-500 smart shunt. Products without RV-C (PWM controllers, standard inverters) do not appear on the screen.
Do I need a shunt?
Only if your batteries are not Go Power! Advanced Lithium. AGM, flooded, gel and other brands of lithium need the GP-SHUNT-500 to report state of charge; Advanced Lithium batteries send it directly over RV-C.
What size hole do I cut for the display?
4.375 × 2.375 in (111 × 60 mm). The bezel is 4.75 × 2.75 in and the unit is 0.75 in deep. It mounts horizontally or vertically.
Does it have Bluetooth and an app?
Yes. Pair it with the free Go Power! Connect app (iOS and Android) to see the same screens on your phone within about 50 m. Firmware updates are delivered over the air.
Where does the terminating resistor go?
RV-C is a CAN network and needs a terminator at the end of the chain. Install one GP-RVC-PT-TR per PowerTrak system, between the battery cable or shunt and the rest of the devices. Advanced Lithium batteries use their own GP-RVC-BCR end caps.
Display Kit or Display Only?
Choose the kit when you are building a new PowerTrak network — the harness and terminator are required. Choose Display Only when the coach already has the RV-C harness run, or you are adding a second screen.
Is PowerTrak what my RV came with?
Go Power! has supplied RV manufacturers since 1996 and is fitted at the factory by Jayco, Forest River, Thor and many other brands. PowerTrak™ is the RV-C display system used with those Go Power! and Dometic components, so these are the same parts your dealer would order.
What is the warranty?
Two years, backed by Go Power!’s North American support team (part of Dometic).
