PRODUCT DETAILS

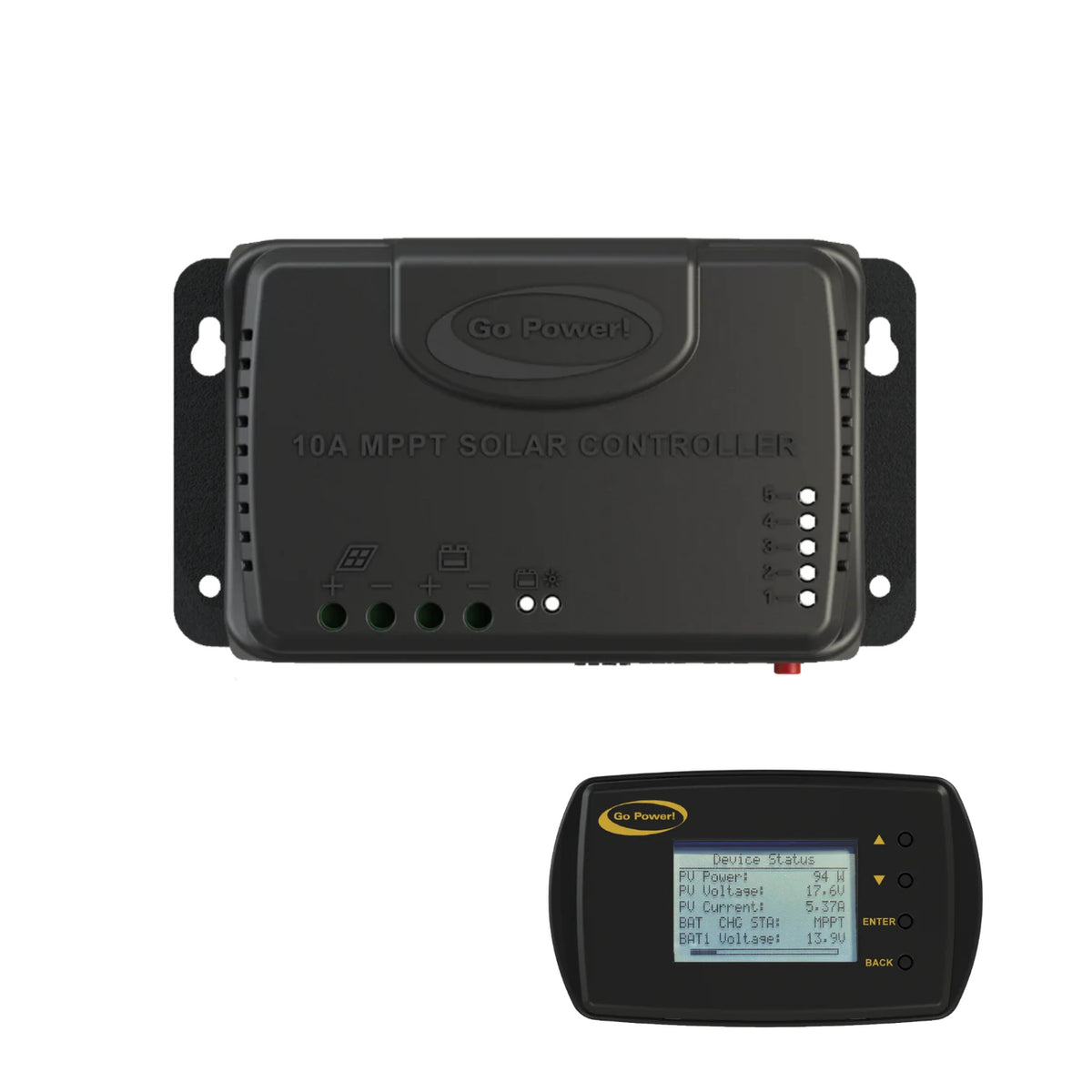

This kit pairs the Go Power! GP-RVC-MPPT-10 10-amp MPPT solar charge controller with the GP-RVC-R Bluetooth remote display and its 25 ft cable — everything for a monitored MPPT install on a 12V RV or van, at a lower price than buying separately. The controller handles 150W @ 12V of panels at up to 98% efficiency with lithium, AGM, gel and flooded profiles; the remote puts voltage, current and harvest on the wall and in the Go Power! Connect app. 5-year warranty and a North American support team (part of Dometic).
Why the kit
The GP-RVC-MPPT-10 itself has status LEDs only. The GP-RVC-R gives you a readout where you live — battery voltage, charge current, totals and min/max — plus Bluetooth so you can check the system from your phone. Bundled, it is the complete monitored controller most owners want.
Built to the standard RV manufacturers install
Go Power! has designed mobile power since 1996 and is the solar brand fitted at the factory by Jayco, Forest River, Thor and other leading RV builders. The RV-C MPPT series is the current generation of those controllers, speaking RS485 and RV-C so it also appears on PowerTrak™ and other coach displays. Part of Dometic.
What's in the box
GP-RVC-MPPT-10 controller, GP-RVC-R remote display, 25 ft remote cable. Sold for aftermarket/DIY installation in the United States; not UL listed; not available for shipment to Canada.
FEATURES
- 10A MPPT, up to 150W of solar at 12V — up to 98% conversion efficiency.
- Battery profiles: GEL, AGM, Flooded, LiFePO4, Custom — 14.4V absorption / 14.0V float for lithium.
- RV-C and RS485 communication — appears on PowerTrak™ and other RV-C displays.
- Kit includes GP-RVC-R remote display with 25 ft cable — wall readout plus Bluetooth to the Go Power! Connect app.
- Up to 100V PV input — series-wire panels for long runs.
- 8mA no-load draw — negligible overnight consumption.
- Compact 6.1 × 3.3 × 1.8 in, 0.67 lb; IP30 for protected indoor mounting.
- Protection: over-discharge, over-voltage, reverse polarity, over-temperature.
- 5-year warranty + North American support team (part of Dometic).
- Not UL listed; sold for US aftermarket/DIY installation (not for OEM production; no shipments to Canada).
WHAT IT RUNS
Sizing guide for a 12V system: a 10A controller handles about 150W of panels. Daily harvest assumes 4.5 peak-sun hours at about 70% of nameplate, which is typical for a flat-mounted RV array. MPPT lets you wire panels in series for less voltage drop and better low-light harvest — keep total open-circuit voltage under 100V. Use 10 AWG between controller and battery.
| Array | Nameplate | Typical daily harvest | Wiring |
|---|---|---|---|
| 1 × 100W panel | 100W | ≈ 0.3 kWh/day (≈ 25Ah) | — |
SPECIFICATIONS
- Length:
- Width:
- Height:
- Weight:
| Kit Contents | GP-RVC-MPPT-10 controller + GP-RVC-R remote display with 25 ft cable |
|---|---|
| Kit SKU | 82889REVB-KIT |
| Model / SKU | GP-RVC-MPPT-10 / 82889 |
| Type | MPPT solar charge controller |
| System Voltage | 12 V |
| Rated Charge Current | 10 A |
| Max PV Input Power | 150 W |
| Max PV Open-Circuit Voltage | <100 V |
| Efficiency | Up to 98% |
| No-load Loss | 8 mA |
| Battery Profiles | GEL, AGM, Flooded, LiFePO4, Custom |
| Bulk/Absorption Voltage | GEL 14.1 V; AGM/Flooded/LiFePO4 14.4 V |
| Float Voltage | 13.7 V (GEL/AGM/Flooded); 14.0 V (LiFePO4) |
| Equalize (Flooded) | 14.9 V |
| Over-Discharge / Recovery | 11.0 V / 12.2–12.6 V |
| Communication | RS485, RV-C |
| Monitoring | Status LEDs; GP-RVC-R remote with Bluetooth (included); RV-C displays |
| Operating Temperature | -35°C to +45°C |
| Dimensions | 6.1 × 3.3 × 1.8 in (155 × 86 × 45.6 mm) |
| Weight | 0.67 lb (300 g) |
| Ingress Protection | IP30 |
| Altitude | <3,000 m |
| Certification | Not UL listed — US aftermarket/DIY installation only |
| Warranty | 5 years |
COMPARE MODELS
| Controller | Type | Charge current | Max solar | Battery banks | Lithium | Monitoring | Certification | Warranty | Best for |
|---|---|---|---|---|---|---|---|---|---|
| GP-SB-PWM-10 | PWM | 10A | 200W @12V | 1 | Yes (12V) | LCD on unit | — | 2 yr | Single 100–200W panel, simple install |
| GP-SB-PWM-30-BT | PWM | 30A | 600W @12V | 1 | Yes (12V) | LCD + Bluetooth app | — | 5 yr | Most single-bank RV kits; OEM replacement |
| Zamp ZS-15AW | PWM 5-stage | 15A | 250W @12V | 1 | Yes | LCD on unit | — | 2 yr | Zamp kit replacement, outlet price |
| Zamp SCC1011 | PWM 5-stage | 40A | 760W @12V | 1 | Yes, BMS wake-up | LCD + optional remote | — | 2 yr | Larger Zamp arrays, outlet price |
| GP-MPPT-85/15 | MPPT | 15A | ≈220W @12V / 440W @24V | 1 | Lead-acid default — check manual | LEDs | IP68 sealed | 5 yr | Exposed/marine mounting, small array |
| GP-RVC-MPPT-10 (in this kit) | MPPT | 10A | 150W @12V | 1 | Yes (LiFePO4 profile) | GP-RVC-R remote (included) / RV-C | Not UL listed (US aftermarket) | 5 yr | One-panel RV-C systems, vans |
| GP-RVC-30-MPPT | MPPT | 30A | 600W @12V / 1,200W @24V | 2 (house priority) | Yes (LiFePO4 profile) | Optional GP-RVC-R / RV-C | Not UL listed (US aftermarket) | 5 yr | Motorhomes: house + chassis from one controller |
| Dometic SC-DB-MPPT-30-12 | MPPT | 30A | 600W @12V | 2 (secondary ≤2.5A) | Yes | PowerTrak™ display (RV-C) | FCC Class B, RoHS | 5 yr | PowerTrak™ systems, 12V dual bank |
| Dometic SC-DB-MPPT-40-12 | MPPT | 40A | 900W @12V | 2 (secondary ≤2.5A) | Yes | PowerTrak™ display (RV-C) | UL 1741, FCC Class B, RoHS | 5 yr | Largest arrays, UL-listed PowerTrak™ installs |
| GP-PHANTOM | MPPT + alternator DC-DC | 30A | Solar + alternator inputs | 2 outputs | Lead-acid default — check manual | LEDs | IP68 sealed | 5 yr | Overland/fleet: charge house bank from solar and alternator |
MANUALS, SAFETY INFORMATION AND DOWNLOADS
ACCESSORIES
Go Power! 10A MPPT Solar Charge Controller 12V with RV-C – GP-RVC-MPPT-10$127.99 USDView$160.00 USD
Go Power! 30A Dual Bank MPPT Solar Controller + Bluetooth Remote Display Kit – GP-RVC-30-MPPT + GP-RVC-R$335.98 USDView$420.00 USD
Go Power! PowerTrak™ Display Extension Harness, 25 ft RV-C Male-to-Male (GP-RVC-EXT-25)$47.99 USDView$60.00 USD
FAQ
What's included in the kit?
The GP-RVC-MPPT-10 MPPT controller, the GP-RVC-R remote display, and a 25 ft remote cable. DC cables, fuses and panel connectors are sold separately.
Is the kit cheaper than buying separately?
Yes — the kit is priced below the controller and remote purchased individually.
Does it work with lithium batteries?
Yes. Select the LiFePO4 profile (14.4V absorption, 14.0V float, no equalization) or a Custom profile matched to your battery maker's specification. It pairs directly with Go Power! Advanced Lithium batteries.
Does it have a display or Bluetooth?
Yes — this kit includes the GP-RVC-R remote display, which gives you a wall-mounted readout of voltage, current and totals plus Bluetooth monitoring in the Go Power! Connect app. On a coach with a PowerTrak™ or other RV-C display, the controller also appears on the network.
Is this controller UL listed?
No. The GP-RVC-MPPT-10 is sold for aftermarket and do-it-yourself installation in the United States and is not intended for OEM production use. It is not available for shipment to Canada. If you need a UL 1741-listed MPPT controller, see the Dometic SC-DB-MPPT-40-12.
What wire gauge and fuse do I need?
Use 10 AWG from controller to battery with a 15A fuse at the battery, and 10 AWG from the panel for runs up to about 25 ft. Connect the battery before the panel when commissioning, and disconnect the panel first when servicing.
MPPT or PWM — which do I need?
PWM is a switch: it connects the panel to the battery and chops the current, so the panel runs at battery voltage and you lose the difference. MPPT converts the panel's higher voltage into extra charge current, harvesting 15–30% more from the same panels, and lets you wire panels in series. For one or two panels on a simple 12V kit, PWM is cost-effective; for 300W or more, lithium batteries, or long cable runs, MPPT pays for itself.
Is Go Power! the controller installed in my RV from the factory?
Very likely, if your coach is a Jayco, Forest River, Thor or many other brands. Go Power! has supplied RV manufacturers since 1996 and its PWM and MPPT controllers are the ones specified on factory solar-prep and solar-equipped coaches, so this is the like-for-like replacement or upgrade.
What's the warranty?
Five years against defects in materials and workmanship, backed by Go Power!'s North American support team (part of Dometic). Register the product after purchase.
